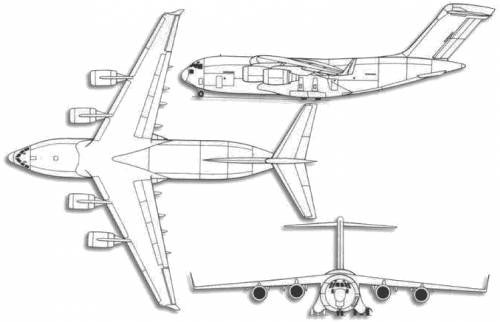

Profile^(BP-2)

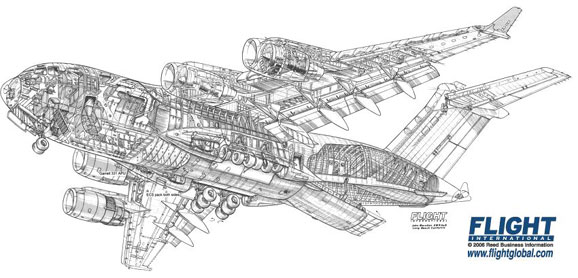

Cutaway Drawing^(FAC)

Specifications^(CF-AF),(CW)

Boeing Globemaster

Crew: 2 pilots, 1 loadmaster
Length: 53.04 m (174 ft)
Wingspan: 51.74 m (169.8 ft)
Height: 16.79 m (55.1 ft)
Empty Weight: 125,645 kg (277,000 lb)
Maximum Gross Weight: 265,350 kg ( 585,000 lb)
Maximum Speed: 830 km/h (520 mph)
Cruising Speed: Mach 0.74 - 0.77, 720 km/h, (450 mph)
Service Ceiling: 13,700 m (45,000 ft)
Maximum Usable Fuel: 82,125 kg (181,054 lb)
Passengers: Seats 54 on the sidewall; 48 in the centerline or 90 seats on pallets or 36 litters and 54 ambulatory patients
Power Plant: 4× Pratt & Whitney F117-PW-100 turbofans, 40,440 lbf (180 kN)
Armament: None
Quantity in CF: 4
Location: 8 Wing Trenton, ON

Top of Page

Serial Number Register

To see the operational history of an aircraft, click on its CF/RCAF serial number.
