During my career in the Canadian Forces as a Radio Operator I made many trips in the Herc and from Aug 1992 to Sept 1994, I was employed at Boeing/Herc Maintenance as a Communications and Radar Systems Technician at 8 Wing Trenton.

Profile

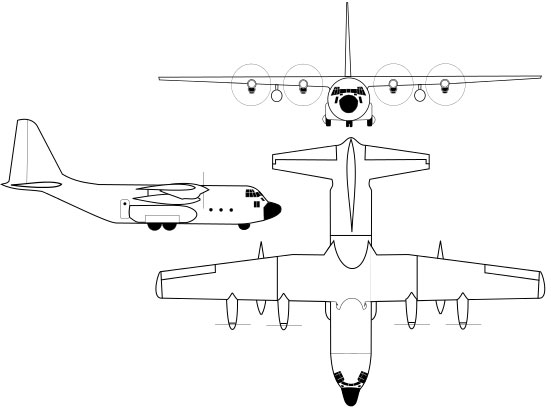

CC-130 Profile^[Wikipedia]

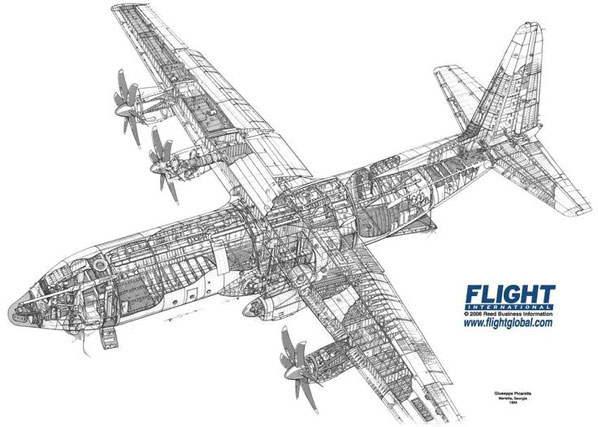

Cutaway View - C-130J ^{[Flightglobal]}

Specifications^{[Royal Canadian Air Force]}

	CC-130	CC-130J
Length:	29.79 m (97.7 ft)	34.37 m (112 ft 9 in)
Wingspan:	40.41 m (132.6 ft)	40.38 m (132 ft 7 in)
Height:	11.73 m (38.5 ft)	11.81 m (38 ft 9 in)
Horizontal Tail Span:		26.05 m (52.8 ft)
Empty Weight:	37,272 kg (82,000 lbs)
Maximum Take-Off Weight:	87,320 kg (175,000 lbs)	74,389 kg (164,000 lbs)
Maximum Payload:		21,772 kg (48,000 lbs)
Payload at 500 n. mi / 926 km:		21,319 kg (47,000 lbs)
Power:	4 Allison T056-A-15 engines	4 Rolls-Royce AE2100D3 turboprop engines (4,591 SHP), Dowty R391, 6-blade propellers
Speed:	556 km/h (345 mph)	355 KTAS / 660 km/h
Service Ceiling:	10,770 m (35,335 ft)
Maximum Range:	7,222 km (4,488 statue miles)	6,852 km (3,700 nautical miles)
Crew:	2 pilots, 1 air combat systems officer, 1 flight engineer, and 1 loadmaster, plus 2 searc and resuce technichians on SAR operations	Minimum 2 pilots and 1 loadmaster
Passengers:	92	128
Troops:	90
Combat Paratroops:	64	92
Litters:	74 plus 2 attendants
Year(s) Procured:	1960 - 1997	Delivery began in 2010
Quantity in CF:	1960 - 1997	Delivery began in 2010
Location(s):	8 Wing Trenton 14 Wing Greenwood 17 Wing Winnipeg Kandahar Airfield, Afghanistan Theatre Support Element	8 Wing Trenton

Serial Number Register

To see the operational history of an aircraft, click on its RCAF or CAF/CF serial number.
