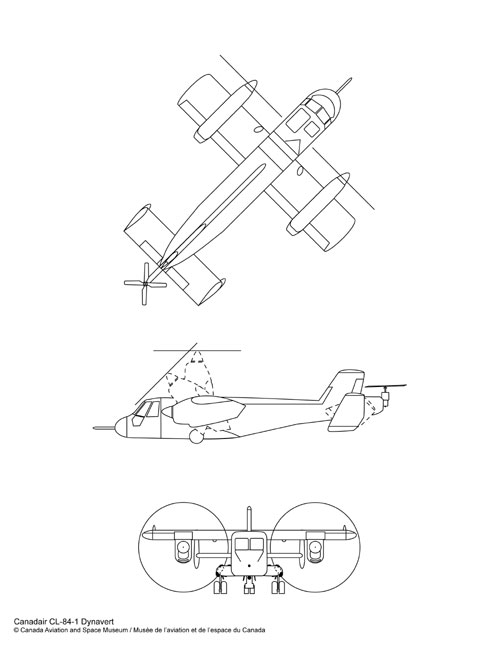

Profile^(CASM)

Specifications ^(WFE)

General characteristics
Crew: 2
Capacity: 12 passengers
Payload: kg ( lb)
Length: 14.415 m (47 ft 3.5 in)
Wingspan:  10.46 m (34 ft 4 in)
Height:  4.34 m (14 ft 3 in)
Wing area:  21.67 m²  (233.3 ft²)
Empty weight: 3,818 kg (8,417 lb)
Airfoil: NACA 63₃-418
Max takeoff weight: STOL: 6,577 kg (14,500 lb), VTOL: 5,710 kg (12,600 lb)
Maximum width over propeller tips: 10.56 m (34 ft 8 in)
Maximum height over propellers during wing tilt: 5.22 m (17 ft 1½ in)
Powerplant: 2 × Lycoming T53 shaft-turbines, 1,500 shp (1,100 kW) each
Main rotor diameter: 4.27 m (14 ft 0 in)
Propellers: 4-bladed, 4.27 m (14 ft 0 in) diameter

Performance
Maximum speed: 517 km/h (279 knots, 321 mph)
Cruise speed: 484 km/h (262 knots, 301 mph)
Never exceed speed: 668 km/h (361 knots, 415 mph)
Range: 678 km (366 nm, 421 mi) with max wing fuel, VTOL, & 10% reserves
Rate of climb: 21 m/s (4,200 ft/min)
Disk loading: 195 kg/m²
Power loading: 1.35 kg/kW


Top of Page

Serial Number Register

NOTE: These aircraft were originally ordered by the RCAF, with the designation CX-84, and with RCAF 4 digit serial numbers. By the time they were actually built, the RCAF had been integrated into the Canadian Armed Forces, so the aircraft were delivered in CAF markings, but with the original RCAF serial numbers. The CAF designation CX-131 was later allocated, along with the appropriate CAF serial numbers (starting at 13101). However, the CAF serial numbers were never marked, and most contemporary sources refer to the aircraft as the CX-84.


To see the operational history of an aircraft, click on its CAF/CF serial number.
