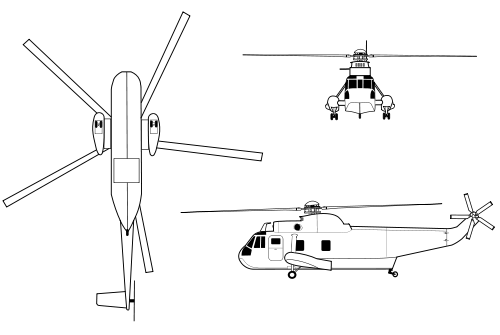

Profile^(WFE)

Specifications ^(WFE)

General characteristics
Crew: 2 pilots, 1 navigator, 1 airborne electronic sensor operator
Capacity:
Payload:
Length: 16.67 m ( ft in)
Rotor Span:  18.9 m ( ft in)
Height:  5.8 m ( ft in)
Empty weight: 6,591 kg (lb)
Max takeoff weight:  9,318 kg  ( lb)
Powerplant: Two 1500 SHP General Electric T-58-GE-8F/-100 turboshafts, 1,500 shp (1118 kW) each

Performance
Cruise speed:  167 km/h ( knots, mph)
Range: 740 km ( nm, mi)
Service ceiling:  3,048 m ( ft)


Top of Page

Serial Number Register

To see the operational history of an aircraft, click on its serial number.
